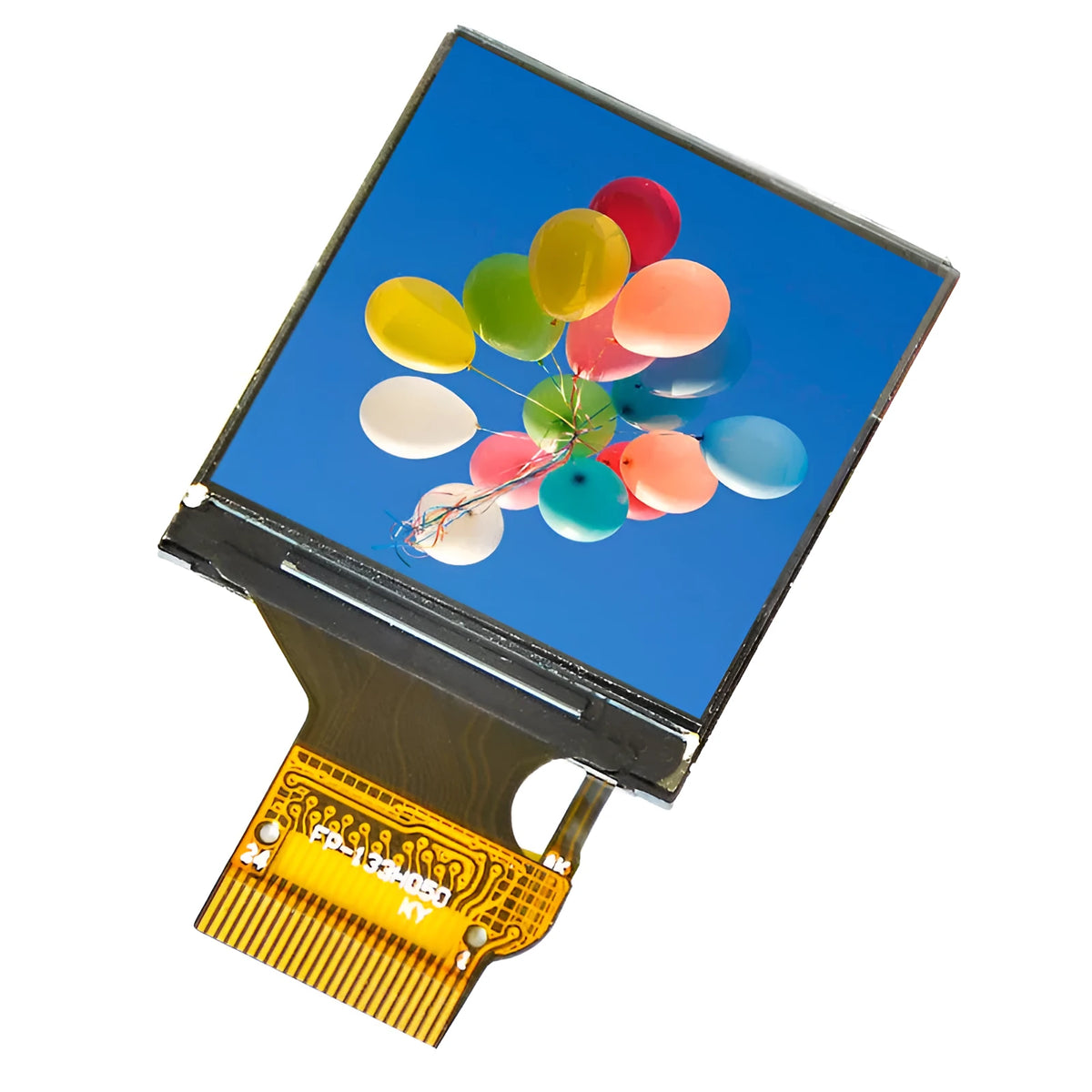

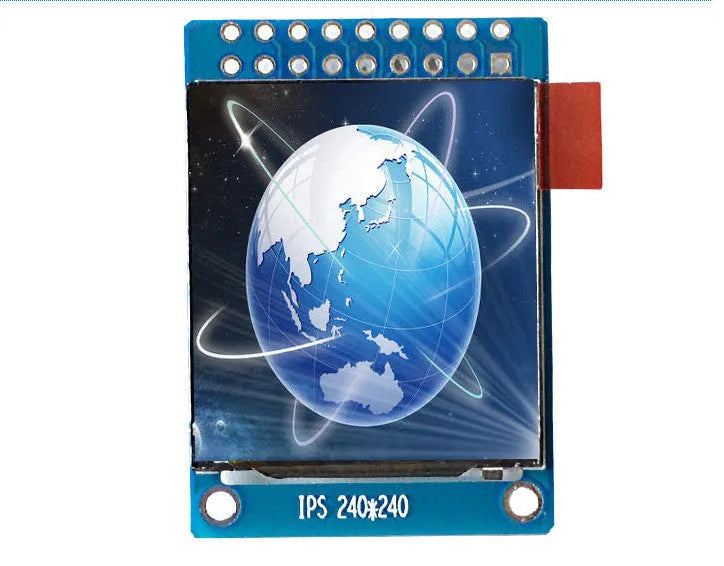

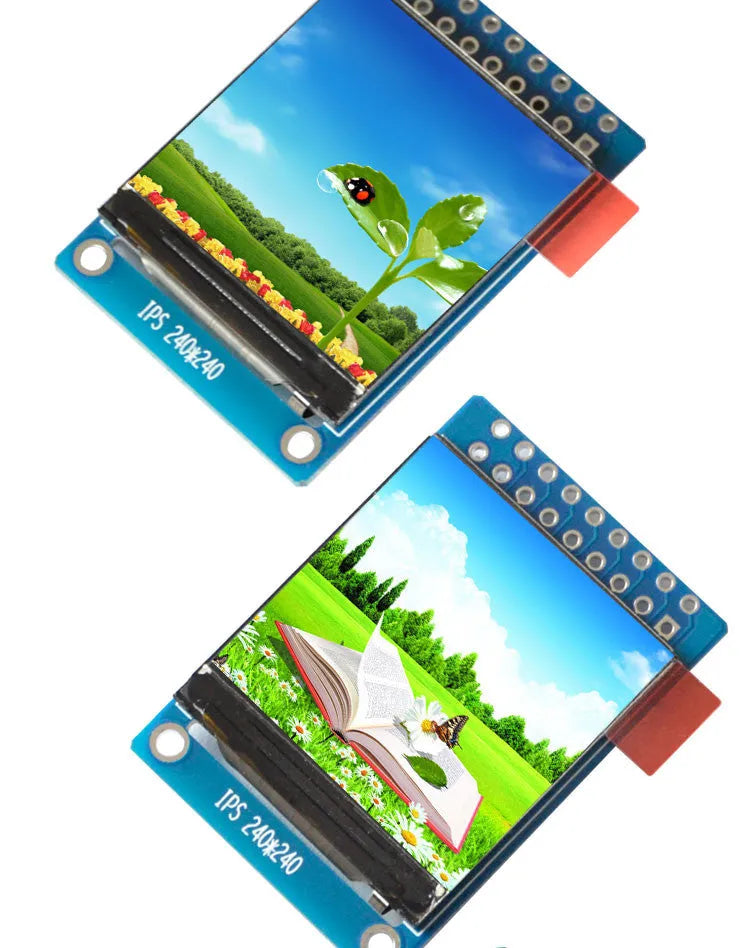

1.3 Inch 240x240 IPS Colour LCD Display Module for Embedded Systems and DIY Electronics

This compact LCD display module provides a professional-quality visual interface for electronics prototyping, instrumentation, and custom projects. With its high-definition IPS colour screen and dual interface options, it offers superior colour reproduction and wider viewing angles compared to standard TFT displays, making it ideal for applications ranging from Raspberry Pi projects to Arduino-based instrumentation where clear, accurate visual feedback is essential. The module's small physical footprint and flexible connectivity make it suitable for space-constrained applications while maintaining excellent readability.

Features and Construction

Designed for integration into custom electronics projects, this display module combines visual clarity with practical connectivity options. Its construction focuses on delivering reliable performance within the specifications provided, making it suitable for both hobbyist and professional applications where a compact colour display is required.

Material and Build

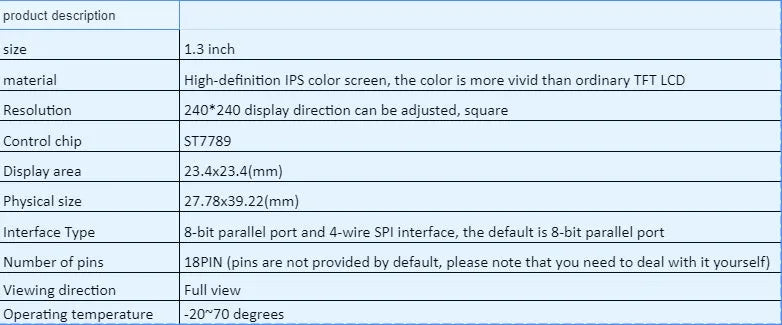

The display utilises an IPS (In-Plane Switching) LCD panel technology, which provides wider viewing angles and better colour consistency across different viewing positions compared to traditional TFT screens. This technology makes the display particularly suitable for applications where multiple viewing angles might be required or where the display position isn't fixed relative to the viewer. The ST7789 driver chip manages display control functions and interface communication, supporting both parallel and serial communication methods.

Size and Practical Fit

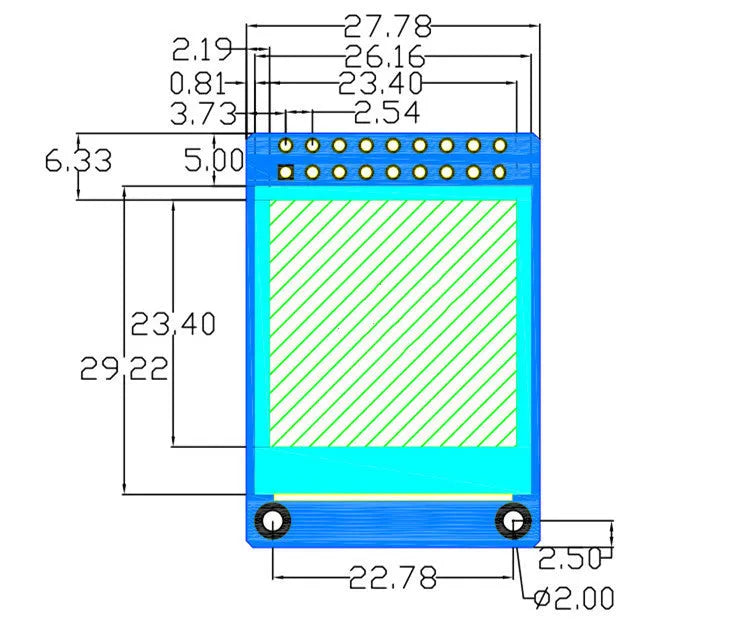

With physical dimensions of 27.78mm by 39.22mm, this display module fits comfortably into compact electronics enclosures and projects where space is at a premium. The active display area measures 23.4mm square, providing a usable screen space that maximises the available module footprint. The 240x240 pixel resolution at this size results in clear, sharp imagery suitable for displaying text, simple graphics, and basic user interface elements without requiring excessive power or complex driving circuitry.

Uses and Placement

This display module finds application across various electronics projects, from educational platforms to professional prototyping. Its specifications make it particularly relevant for specific use cases where a small, colour display with good viewing characteristics enhances the user experience or provides necessary visual feedback.

Event or Professional Use

For professional applications, this display serves well in instrumentation panels, control interfaces, and monitoring equipment where compact size and clear visual output are priorities. The operating temperature range of -20°C to 70°C allows deployment in environments with moderate temperature variations, while the IPS technology ensures consistent colour representation across different viewing positions—important in multi-user or public-facing installations. The dual interface options provide integration flexibility with different microcontroller platforms and systems.

Everyday Home Use

Hobbyists and makers can incorporate this display into Raspberry Pi projects, Arduino-based systems, and custom electronics builds for applications like weather stations, home automation interfaces, retro gaming consoles, and educational tools. The default 8-bit parallel port configuration simplifies initial setup for many common microcontroller projects, while the SPI option offers alternative connectivity for projects with limited GPIO pins. The vivid colour reproduction enhances user interfaces and visual feedback in DIY electronics.

Benefits and Buying Value

This display module offers practical advantages for electronics projects through its combination of visual quality, physical characteristics, and integration options. These benefits translate to value through reduced development complexity and reliable performance within the specified parameters.

Reuse and Low Maintenance

The robust operating temperature range and standard interface options allow this display to be repurposed across different projects as development needs change. Unlike some displays with proprietary connectors or specialised interface requirements, the parallel and SPI options are widely supported across microcontroller platforms, reducing lock-in to specific hardware ecosystems. The physical construction is designed for integration rather than frequent handling, supporting stable long-term installation in completed projects.

Why Choose This Product

This display module stands out for embedded projects requiring a compact colour display with good viewing characteristics. The IPS technology provides better viewing angles than basic TFT displays, while the 240x240 resolution offers sufficient detail for most interface requirements without demanding excessive processing power or memory. The dual interface options accommodate different project architectures, and the explicit temperature range specification provides confidence for deployment in varied environments. For developers needing a small, reliable colour display with documented specifications, this module offers a straightforward solution.
